Calibration System

The dedicated calibration software and test setup are used to characterize the couplers against laboratory reference power measurement equipment.

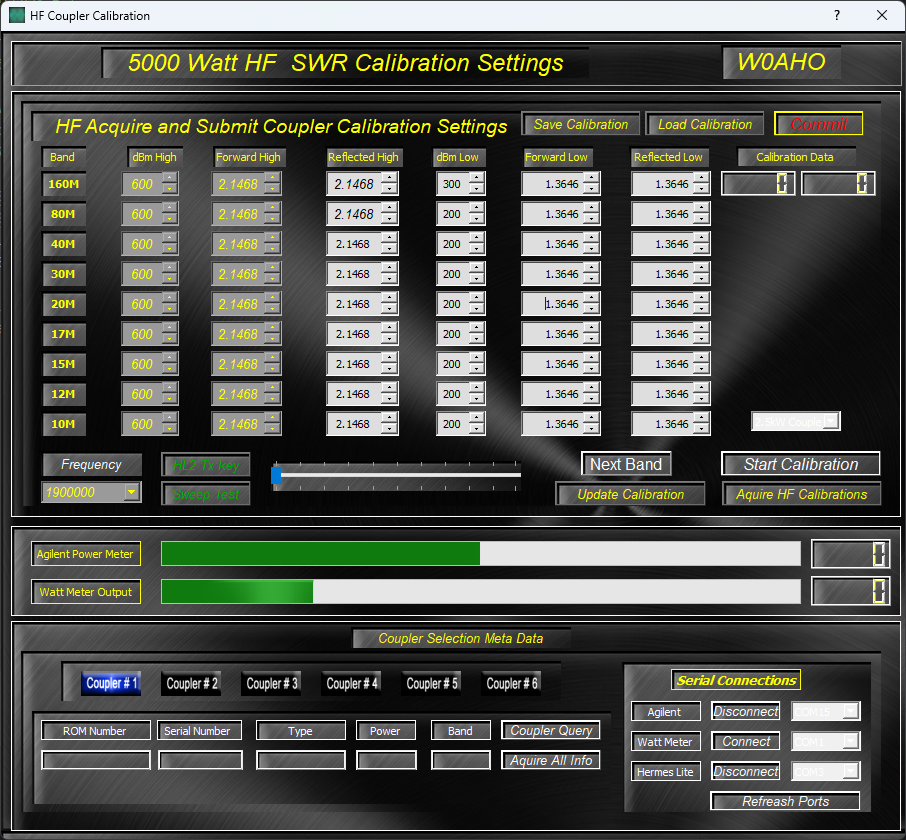

Calibration program

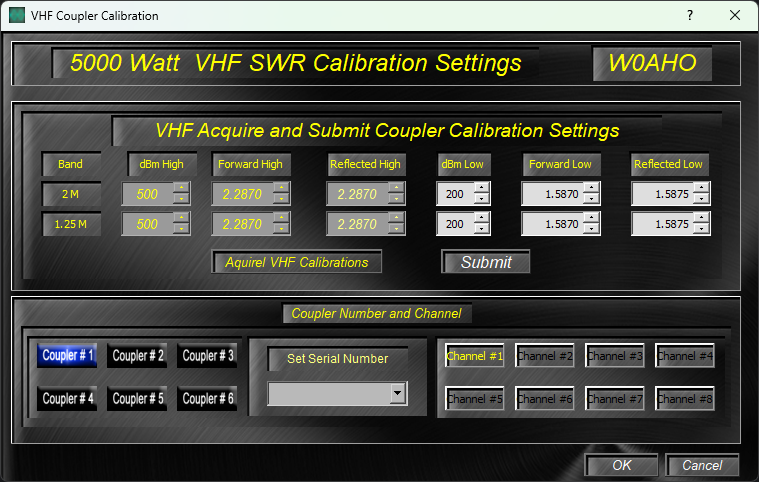

VHF calibration screen — VHF calibration

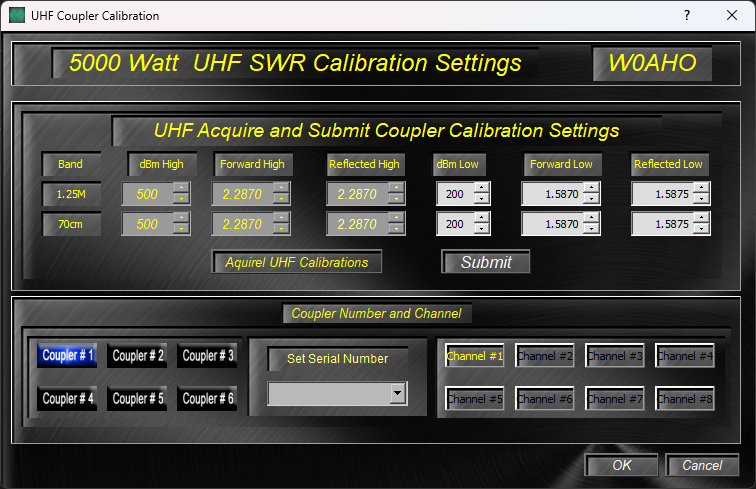

UHF calibration screen — UHF calibration

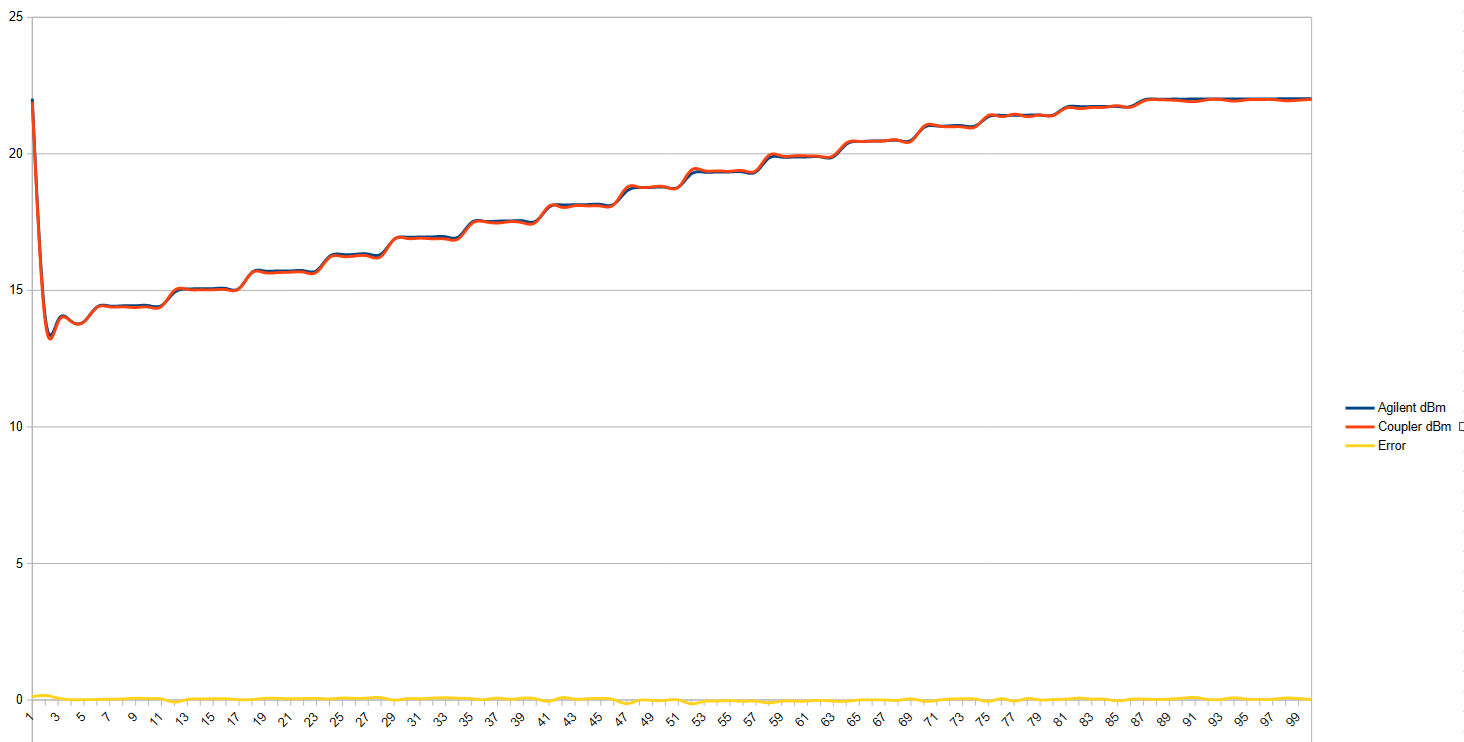

17 meter power sweep — 17 meter power-sweep characterization
